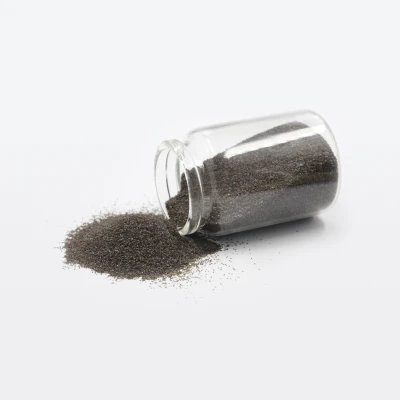

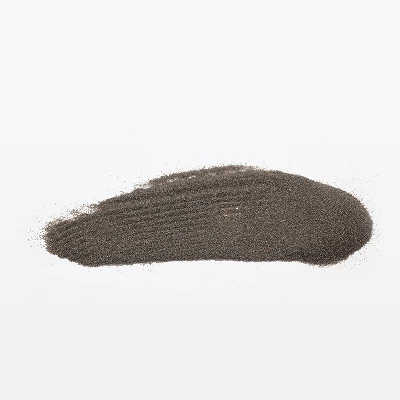

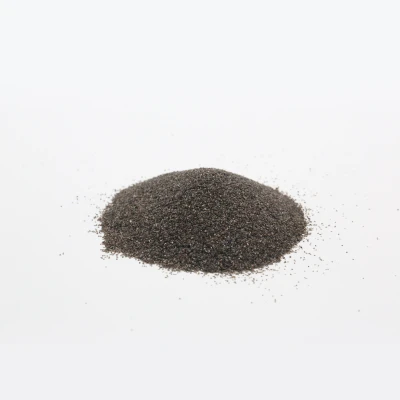

Brown Fused Aluminum Oxide (grit)
Brown Fused Alumina grit for resin bonded abrasives Brown Fused Alumina grit for vitrified bonded abrasives Brown Fused Alumina for refractory(Sand)
Send Inquiry
Add To Inquiry
Brown Fused Alumina grit for resin bonded abrasives
| Specification | Al2O3(%) | Fe2O3(%) | SiO2(%) | TiO2(%) | CaO(%) | Magnetic Material (%) |
| F12-F24 | 96.0 ± 0.5 | ＜0.30 | ＜1.00 | ＞1.6 | ≤0.45 | ≤0.024 |
| F30-F100 | 96.0 ± 0.5 | ＜0.30 | ＜1.00 | ＞1.6 | ≤0.45 | ≤0.019 |
| F120-F220 | 96.0 ± 0.5 | ＜0.30 | ＜1.00 | ＞1.6 | ≤0.45 | ≤0.014 |
Brown Fused Alumina grit for vitrified bonded abrasives
| Specification | Al2O3(%) | Fe2O3(%) | SiO2(%) | TiO2(%) | CaO(%) | Magnetic Material (%) |
| F12-F24 | 95.5 ± 0.5 | ＜0.30 | ≤1.00 | ＞2.0 | ≤0.45 | ≤0.024 |
| F30-F100 | 95.5 ± 0.5 | ＜0.30 | ≤1.00 | ＞2.0 | ≤0.45 | ≤0.019 |
| F120-F220 | 95.5 ± 0.5 | ＜0.30 | ≤1.00 | ＞2.0 | ≤0.45 | ≤0.014 |
Brown Fused Alumina for refractory(Sand)
| Specification | Al2O3(%) | Fe2O3(%) | SiO2(%) | TiO2(%) | CaO+ MgO | Magnetic Material (%) |
| 0-1mm | 95.3-96.5 | ＜0.3 | ＜1.00 | ＞1.6 | ≤0.55 | ＜0.05 |
| 1-3mm | 95.3-96.5 | ＜0.3 | ＜1.00 | ＞1.6 | ≤0.55 | ＜0.05 |
| 3-5mm | 95.3-96.5 | ＜0.3 | ＜1.00 | ＞1.6 | ≤0.55 | ＜0.05 |
| 5-8mm | 95.3-96.5 | ＜0.3 | ＜1.00 | ＞1.6 | ≤0.55 | ＜0.05 |
