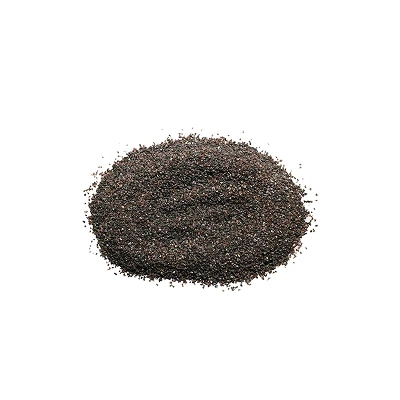

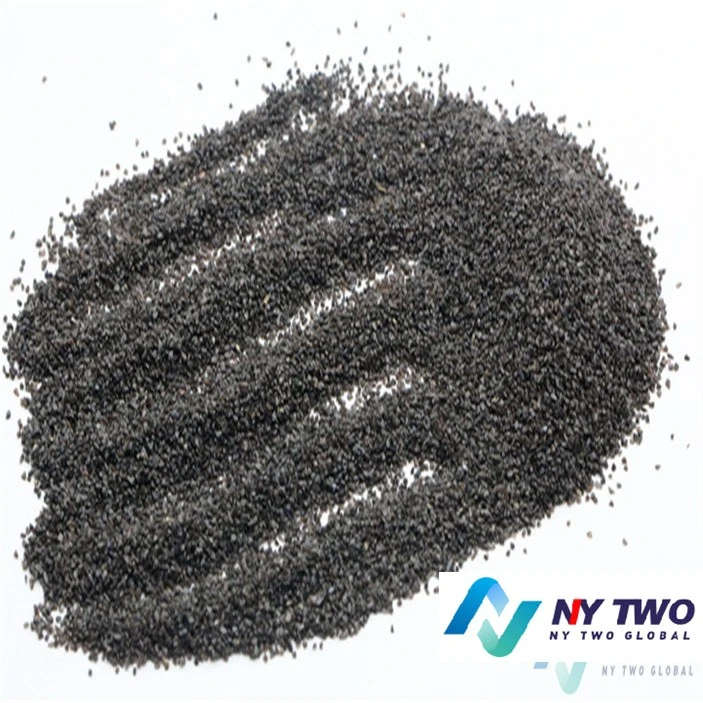

Brown Fused Alumina
Brown corundum is brown, made of bauxite and coke ( anthracite ) as main raw materials smelted at 2300℃ in a dumping furnace. Its main chemical components are Al2O3 and TiO2,and it also contains a small amount of SiO2 and Fe2O3 etc. Microhardness is HV 1800-2200. It is suitable for grinding...
Brown corundum is brown, made of bauxite and coke ( anthracite ) as main raw materials smelted at 2300℃ in a dumping furnace. Its main chemical components are Al2O3 and TiO2,and it also contains a small amount of SiO2 and Fe2O3 etc. Microhardness is HV 1800-2200. It is suitable for grinding metals with high tensile strength, such as various universal steel, wrought iron and hard bronze etc. It also can be used to make advanced refractory materials. Yue Abrasives brown corundum has characteristics of high purity, good crystallization, corrosion resistance, no explosion and no cracking etc. The fire resistance temperature reaches to over 1900℃.
Products Description
SIZE OF BROWN FUSED ALUMINA
| Refractory sand | segment sand | "FEPA" | 0-1mm 1-3mm 3-5mm 5-8mm 8-10mm 10-15mm... |
| fine powder | "FEPA" | -100mesh -200mesh -325mesh... | |
| Abrasive sand | grit sand | "FEPA" | F8 F10 F12 F14 F16 F20 F22 F24 F30 F36 F46 F54 F60 F70 F80 F90 F100 F120 F150 F180 F220 |
| micropowder | "P" | P240 P280 P320 P360 P400 P500 P600 P800 P1000 P1200 P1500 P2000 P2500 | |
| "FEPA" | F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500 F2000 F3000 | ||
| "JIS" | 240# 280# 320# 360# 400# 500# 600# 700# 800# 1000# 1200# 1500# 2000# 2500# 3000# |
Specification
PHYSICAL INDEX OF BROWN FUSED ALUMINA
| Color | Brown |
| Basic Mineral | α-AI2O3 |
| Crystal shape | Trigonal crystal system |
| Hexagonal crystal shape | |
| Hardness(mohs) | ≥9.0 |
| Micro hardness | HV1800-2200 |
| Melting point(℃) | 2250 |
| Max temperature(℃) | 1900 |
| True density(g/cm3) | 3.9 |
| Bulk density(g/cm3) | 1.65-1.95g/cm3 |
CHEMICAL INDEX OF BROWN FUSED ALUMINA
| Refractory sand | ||||
| Grit Size | AI2O3 | SiO2 | Fe2O3 | TiO2 |
| 0-1mm | >95.2% | <1% | <0.3% | <3% |
| 1-3mm | >95.2% | <1% | <0.3% | <3% |
| 3-5mm | >95.2% | <1% | <0.3% | <3% |
| 200mesh | >95.0% | <1% | <0.3% | <3% |
| 325mesh | >95.0% | <1% | <0.3% | <3% |
| Abrasives sand | ||||
| Grit Size | AI2O3 | SiO2 | Fe2O3 | TiO2 |
| F8-F220 | >95.2% | <1% | <0.3% | <3% |
| F230-F3000 | >95.% | <1.3% | <0.3% | <3.5% |
APPLICATION OF BROWN FUSED ALUMINA
| 1. Used in refractory material, sandblasting, free grinding, resin abrasives, coated abrasives, waterjet cutting, water filtration and function filter, etc. |
| 2. Brown fused alumina for lapping and polishing process. |
| 3. Grinding high carbon steel, high-speed steel and chilled steel. |
| 4. Surface preparation and finishing. |
| 5. Producing mold of precision casting. |
| 6. Thermal Spraying. |
