How do refractory materials resist high temperatures?

Refractory materials play a crucial role in numerous industries where high - temperature environments are the norm. As a refractory supplier, I've witnessed firsthand the importance of these materials and how they manage to withstand extreme heat. In this blog, I'll delve into the science behind how refractory materials resist high temperatures.

Chemical Composition and High - Temperature Resistance

The chemical composition of refractory materials is the cornerstone of their ability to resist high temperatures. Different elements and compounds contribute in unique ways to this resistance.

One of the most common compounds found in refractory materials is alumina (Al₂O₃). Alumina has a high melting point of around 2072°C. It forms a stable crystal structure that can endure intense heat without significant deformation. When exposed to high temperatures, the strong ionic bonds within the alumina lattice hold the atoms in place, preventing the material from melting or softening easily.

Silica (SiO₂) is another key component. Silica exists in various forms, such as quartz, cristobalite, and tridymite. Each form has different thermal properties. For example, fused silica has excellent thermal shock resistance due to its low coefficient of thermal expansion. When heated, it doesn't expand or contract rapidly, which reduces the risk of cracking under thermal stress.

Mullite, a compound with the chemical formula 3Al₂O₃·2SiO₂, is also highly valued in refractory applications. Mullite Made in China offers a great example of high - quality mullite products. Mullite has a high melting point, good thermal stability, and low thermal conductivity. Its crystal structure is well - ordered, which helps it maintain its integrity at high temperatures. The presence of mullite in a refractory material can significantly enhance its overall high - temperature performance.

Microstructure and Heat Resistance

The microstructure of refractory materials is equally important as their chemical composition. A well - designed microstructure can improve heat resistance in several ways.

Grain size and shape play a vital role. Fine - grained refractory materials often have better mechanical properties at high temperatures. Smaller grains mean more grain boundaries, which can act as barriers to the movement of dislocations. Dislocations are defects in the crystal lattice that can cause deformation under stress. By impeding the movement of dislocations, fine - grained materials can maintain their strength and shape at high temperatures.

Pores in the microstructure also have a significant impact. Open pores can allow the penetration of hot gases and molten metals, which may lead to corrosion and degradation of the refractory material. On the other hand, closed pores can act as insulators, reducing the thermal conductivity of the material. A carefully controlled pore structure can be engineered to balance the need for insulation and resistance to chemical attack.

Phase Transitions and High - Temperature Stability

Many refractory materials undergo phase transitions at high temperatures. These transitions can either be beneficial or detrimental to the material's performance, depending on how they are managed.

For example, some materials may transform from a less stable phase to a more stable one at high temperatures. This transformation can result in an increase in density and strength, enhancing the material's ability to resist heat. However, if the phase transition is accompanied by a large volume change, it can cause cracking and spalling of the refractory material.

Controlling the rate of phase transitions is crucial. By adding certain additives or using specific manufacturing processes, we can slow down or accelerate phase transitions to optimize the material's performance. For instance, in the case of Fused Mullite, the manufacturing process can be adjusted to ensure that the phase transitions occur in a controlled manner, resulting in a product with excellent high - temperature stability.

Thermal Conductivity and Heat Transfer

Thermal conductivity is a key property when it comes to high - temperature resistance. Refractory materials with low thermal conductivity are preferred in many applications because they can act as insulators, reducing heat loss and protecting the surrounding structures.

The chemical composition and microstructure of the material influence its thermal conductivity. As mentioned earlier, closed pores can reduce thermal conductivity by impeding the transfer of heat through the material. Additionally, materials with complex crystal structures or a high degree of disorder tend to have lower thermal conductivity.

For example, some refractory materials contain fibers or whiskers that are randomly oriented within the matrix. These fibers can disrupt the heat transfer path, reducing the overall thermal conductivity of the material. By carefully selecting the raw materials and manufacturing processes, we can tailor the thermal conductivity of refractory materials to meet the specific requirements of different applications.

Chemical Reactions at High Temperatures

In high - temperature environments, refractory materials may come into contact with various chemicals, such as molten metals, slags, and gases. These chemicals can react with the refractory material, leading to corrosion and degradation.

To resist chemical attack, refractory materials are often designed with a high degree of chemical stability. For example, materials with a high alumina content are generally more resistant to acidic slags, while materials with a high magnesia (MgO) content are better at resisting basic slags.

Surface coatings can also be applied to refractory materials to provide an additional layer of protection. These coatings can act as a barrier between the refractory material and the corrosive chemicals, preventing direct contact and reducing the rate of chemical reactions.

Applications and the Need for High - Temperature Resistance

Refractory materials are used in a wide range of industries, each with its own unique high - temperature requirements.

In the steel industry, refractory materials line the furnaces where steel is melted and refined. These materials must be able to withstand the extremely high temperatures of molten steel, as well as the corrosive effects of slag and gases. The quality of the refractory lining directly affects the efficiency and lifespan of the furnace.

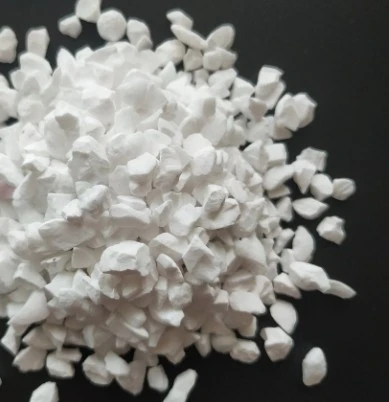

The glass industry also relies heavily on refractory materials. Glass melting furnaces operate at temperatures up to 1600°C, and the refractory lining must be able to resist the corrosive action of molten glass. Materials like Use Of White Corundum Abrasives are often used in the glass industry due to their high - temperature resistance and chemical stability.

In the cement industry, rotary kilns are used to produce cement clinker at temperatures around 1450°C. Refractory materials in these kilns must be able to withstand the mechanical stress, thermal shock, and chemical attack associated with the cement - making process.

Conclusion

As a refractory supplier, I understand the importance of providing high - quality materials that can withstand extreme temperatures. The ability of refractory materials to resist high temperatures is a result of their chemical composition, microstructure, phase transitions, thermal conductivity, and resistance to chemical reactions.

By continuously researching and developing new materials and manufacturing processes, we can improve the performance of refractory materials and meet the ever - increasing demands of various industries. If you're in need of refractory materials for your high - temperature applications, I encourage you to reach out for a procurement discussion. We can work together to find the best solutions for your specific needs.

References

• "Introduction to Ceramics" by W. D. Kingery, H. K. Bowen, and D. R. Uhlmann.
• "Refractories Handbook" edited by R. N. Singh and I. N. Mitra.
• Various industry research papers on high - temperature materials and their applications.
