How does Fused Spinel behave under pressure?
Fused spinel, a synthetic refractory material, has gained significant attention in various high - temperature industries due to its excellent physical and chemical properties. As a reliable fused spinel supplier, I am often asked about how fused spinel behaves under pressure. In this blog, I will delve into the scientific aspects of fused spinel's performance under pressure and explore its implications for different applications.
Structure and Properties of Fused Spinel
Before discussing its behavior under pressure, it is essential to understand the basic structure and properties of fused spinel. Fused spinel is typically a magnesium - aluminum oxide (MgAl₂O₄) with a cubic crystal structure. This structure consists of a face - centered cubic lattice of oxygen ions, with magnesium and aluminum cations occupying the tetrahedral and octahedral interstitial sites, respectively.
The unique crystal structure endows fused spinel with several remarkable properties. It has high melting point, excellent thermal shock resistance, and good chemical stability against various corrosive agents. These properties make it an ideal material for use in refractory linings in steelmaking, cement, and glass industries.
Effects of Pressure on Fused Spinel
Structural Changes
Under pressure, the crystal structure of fused spinel can undergo significant changes. As pressure increases, the inter - atomic distances within the crystal lattice decrease. This compression can lead to a phase transition in some cases. For example, at extremely high pressures, the cubic spinel structure may transform into a denser phase with a different arrangement of atoms.
Experimental studies using high - pressure X - ray diffraction techniques have shown that the lattice parameters of fused spinel change linearly with pressure in the low - to - moderate pressure range. However, as the pressure approaches a critical value, the rate of change in lattice parameters may deviate from linearity, indicating the onset of a structural transformation.
Mechanical Properties
Pressure also has a profound impact on the mechanical properties of fused spinel. At low pressures, the material exhibits elastic behavior, meaning that it can deform under pressure and return to its original shape once the pressure is removed. The elastic modulus of fused spinel, which measures its stiffness, increases with pressure. This is because the closer packing of atoms under pressure makes it more difficult for the crystal lattice to deform.
As the pressure continues to rise, fused spinel may enter the plastic deformation regime. In this regime, the material undergoes permanent deformation due to the movement of dislocations within the crystal lattice. The yield strength, which is the stress at which plastic deformation begins, also increases with pressure. This enhanced mechanical strength under pressure is beneficial for applications where the material is subjected to high - stress conditions, such as in the linings of blast furnaces.
Chemical Reactivity
The chemical reactivity of fused spinel can be altered under pressure. Pressure can affect the kinetics of chemical reactions involving fused spinel by changing the activation energy of the reactions. For example, under high pressure, the reaction between fused spinel and certain slag components in steelmaking may be accelerated. This is because the increased pressure can bring the reactant molecules closer together, increasing the frequency of collisions and thus the reaction rate.
On the other hand, pressure can also enhance the chemical stability of fused spinel in some cases. The closer packing of atoms under pressure can make it more difficult for external chemical species to penetrate the crystal lattice and react with the material. This is particularly important in applications where the material is exposed to corrosive environments, such as in the cement industry.
Applications and Implications
Steelmaking Industry
In the steelmaking industry, fused spinel is widely used in the refractory linings of ladles, converters, and electric arc furnaces. The ability of fused spinel to withstand high pressure is crucial in these applications. During the steelmaking process, the refractory lining is subjected to high - pressure forces from the molten steel and slag. The enhanced mechanical strength of fused spinel under pressure helps to prevent the lining from cracking and spalling, thereby extending its service life.
Moreover, the change in chemical reactivity of fused spinel under pressure can also affect the performance of the refractory lining. By understanding how fused spinel behaves under pressure, steelmakers can optimize the composition and structure of the refractory lining to improve its resistance to corrosion and erosion.
Cement Industry
In the cement industry, fused spinel is used in the refractory linings of rotary kilns. The high - temperature and high - pressure environment inside the kiln can cause significant stress on the refractory lining. The excellent thermal shock resistance and mechanical strength of fused spinel under pressure make it an ideal material for this application.
The chemical stability of fused spinel under pressure also helps to protect the lining from the corrosive effects of cement clinker and combustion gases. By using fused spinel in the refractory lining, cement manufacturers can reduce maintenance costs and improve the efficiency of the kiln operation.
Related Refractory Materials
In addition to fused spinel, there are other refractory materials that are commonly used in high - temperature industries. For example, Calcium Aluminate Powder is another important refractory material. It has good binding properties and can be used in the production of refractory castables.

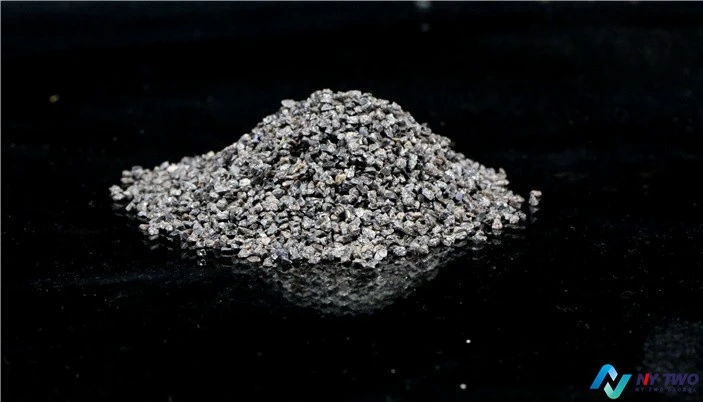

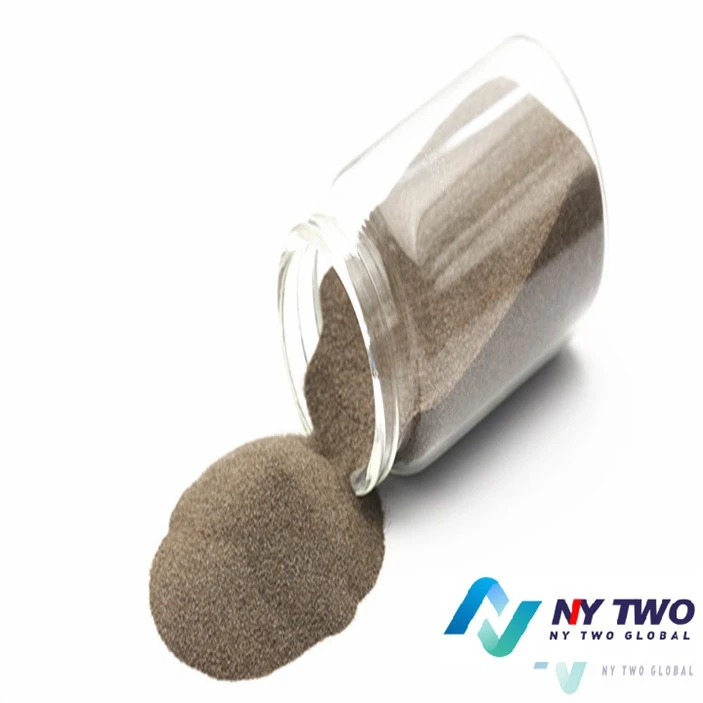

Brown Fused Alumina Is Called The Teeth Of Industry is a well - known abrasive and refractory material. It has high hardness and wear resistance, making it suitable for use in grinding wheels and refractory linings. If you are interested in the safety data of brown fused alumina, you can refer to Brown Fused Alumina Msds.
Conclusion
In conclusion, fused spinel exhibits complex behavior under pressure, including structural changes, alterations in mechanical properties, and variations in chemical reactivity. Understanding these behaviors is essential for optimizing the performance of fused spinel in various high - temperature applications.
As a fused spinel supplier, I am committed to providing high - quality fused spinel products that can meet the specific requirements of different industries. If you are interested in purchasing fused spinel or have any questions about its performance under pressure, please feel free to contact me for further discussions and procurement negotiations.
References
- Akaogi, M., Navrotsky, A., & Jeanloz, R. (1984). High - pressure phase transformations in spinel - structured compounds. Physics and Chemistry of Minerals, 11(1), 1 - 12.
- Kingery, W. D., Bowen, H. K., & Uhlmann, D. R. (1976). Introduction to ceramics. Wiley.
- Zhang, X., & Liu, Z. (2010). Mechanical properties of refractory materials under high temperature and high pressure. Journal of the European Ceramic Society, 30(12), 2519 - 2524.
