What are the refractory materials for low - temperature kilns?

What are the refractory materials for low - temperature kilns?

In the field of industrial kilns, low - temperature kilns play a crucial role in various processes such as ceramic firing, some types of heat treatment, and small - scale melting operations. Selecting the appropriate refractory materials for low - temperature kilns is essential to ensure the efficiency, longevity, and quality of the production process. As a refractory supplier, I have in - depth knowledge of the materials suitable for these kilns, and I'd like to share some insights with you.

Understanding Low - Temperature Kilns

Low - temperature kilns generally operate in the temperature range of 600°C - 1200°C. This temperature range is significantly lower than that of high - temperature kilns used in steelmaking or glass melting, which can reach over 1500°C. The lower operating temperature allows for a wider selection of refractory materials, but still requires careful consideration based on the specific requirements of the kiln, such as the atmosphere inside the kiln (oxidizing or reducing), the type of material being processed, and the frequency of heating and cooling cycles.

Common Refractory Materials for Low - Temperature Kilns

Fireclay Bricks

Fireclay bricks are one of the most widely used refractory materials for low - temperature kilns. They are made from natural fireclay, which is a type of clay with high alumina content. These bricks have good thermal insulation properties, which help to reduce heat loss from the kiln. They can withstand temperatures up to around 1200°C, making them suitable for many low - temperature applications.

Fireclay bricks are relatively inexpensive compared to some other refractory materials, which makes them a cost - effective choice for small - scale operations or kilns with less demanding requirements. They are also easy to install and can be cut or shaped on - site to fit the specific design of the kiln. However, they may have relatively lower strength compared to some high - performance refractory materials, and they can be prone to cracking if subjected to rapid temperature changes.

Insulating Firebricks (IFBs)

Insulating firebricks are designed specifically for their excellent thermal insulation properties. They are made from lightweight materials such as alumina - silica fibers or expanded clay aggregates. IFBs have a very low thermal conductivity, which means they can effectively reduce the amount of heat transferred through the kiln walls.

These bricks are often used in the lining of low - temperature kilns to improve energy efficiency. They can withstand temperatures up to around 1000°C - 1200°C, depending on the specific type. One of the main advantages of IFBs is their low density, which reduces the overall weight of the kiln structure. However, they are generally more brittle than fireclay bricks and need to be handled with care during installation.

Fused Spinel

Fused spinel is a high - performance refractory material that is also suitable for low - temperature kilns. Spinel is a mineral composed of magnesium aluminate (MgAl₂O₄). Fused spinel is produced by melting the raw materials in an electric arc furnace and then cooling them to form a crystalline structure.

Fused spinel has excellent chemical resistance, which makes it suitable for kilns where the atmosphere may be corrosive. It also has good thermal shock resistance, meaning it can withstand rapid temperature changes without cracking. In low - temperature kilns, fused spinel can be used as a lining material to protect the kiln from chemical attack and to improve the overall durability of the kiln.

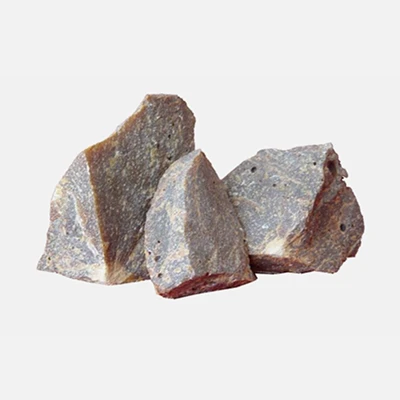

Fused Magnesia

Fused magnesia is another important refractory material for low - temperature kilns. It is made by fusing high - purity magnesite (MgCO₃) in an electric arc furnace. Fused magnesia has a high melting point (around 2800°C), but it can also be used effectively in low - temperature applications.

It has excellent resistance to basic slags and alkalis, which makes it suitable for kilns where these substances may be present. In low - temperature kilns, fused magnesia can be used in areas where there is a risk of chemical attack, such as the bottom or the sidewalls near the material being processed. However, it is relatively expensive compared to some other refractory materials, so its use is often limited to areas where its specific properties are required.

Fused White Corundum

Fused white corundum is a high - purity alumina (Al₂O₃) material produced by fusing bauxite or other alumina - rich raw materials in an electric arc furnace. It has a very high melting point (around 2050°C) and excellent hardness and wear resistance.

In low - temperature kilns, fused white corundum can be used in areas where there is a high degree of abrasion, such as in the feed chutes or the areas where the material is being agitated. It can also be used as a component in refractory castables or ramming mixes to improve their strength and durability.

Factors to Consider When Selecting Refractory Materials

When choosing refractory materials for low - temperature kilns, several factors need to be taken into account:

Temperature

As mentioned earlier, the operating temperature of the kiln is a critical factor. Different refractory materials have different temperature limits, and it is essential to select materials that can withstand the maximum temperature reached in the kiln.

Chemical Environment

The chemical composition of the atmosphere inside the kiln and the materials being processed can have a significant impact on the performance of the refractory materials. For example, if the kiln is used to process materials that produce acidic gases, refractory materials with good acid resistance should be selected. Similarly, if there are basic slags or alkalis present, materials with high basic resistance, such as fused magnesia, may be more suitable.

Thermal Shock Resistance

Low - temperature kilns may be subjected to frequent heating and cooling cycles, which can cause thermal shock to the refractory materials. Materials with good thermal shock resistance, such as fused spinel, are more likely to withstand these cycles without cracking or spalling.

Cost

Cost is always an important consideration, especially for small - scale operations or businesses with tight budgets. While high - performance refractory materials may offer better properties, they may also be more expensive. It is necessary to balance the cost with the performance requirements of the kiln.

Conclusion

Selecting the right refractory materials for low - temperature kilns is a complex process that requires a thorough understanding of the kiln's operating conditions and the properties of different refractory materials. As a refractory supplier, I can provide you with a wide range of options to meet your specific needs. Whether you need fireclay bricks for a simple and cost - effective solution or high - performance materials like fused spinel for more demanding applications, I can offer you the best products and technical support.

If you are in the process of building or upgrading a low - temperature kiln and need advice on refractory materials, or if you are interested in placing an order, please feel free to contact me. I am always ready to assist you in making the right choice for your kiln.

References

• Reed, J. S. (1995). Principles of Ceramic Processing. John Wiley & Sons.
• Schneider, H., Schwetz, K. A., & Pötschke, P. (2004). Refractories Handbook. Wiley - VCH.
• Zinkhan, M. M. (2008). Refractory Materials and Applications. ASM International.
